FTTH Design Best Practices for High-Speed Connectivity
Introduction to Fiber Network Design
The Rising Demand for Fiber Infrastructure
Fiber optic networks are at the forefront of this digital revolution, as the demand for high-speed internet is skyrocketing worldwide. Global IP traffic has surpassed 400 exabytes per month, according to industry estimates, and most of that load is carried by Fiber. Everything, including 5G backhaul, cloud computing, and smart cities, is dependent on a strong Fiber infrastructure.
The problem is that constructing that infrastructure involves more than just installing cables; it also involves deciding how to install them. Should they move underground for protection or overhead for cost savings? This decision can have a 30 to 70% influence on project expenditures, network uptime, and long-term maintenance strategy.
Consider it like building roads: do you invest in more exposed but faster-to-build roadways or tunnels that last decades? Let’s examine both possibilities using real-world examples.

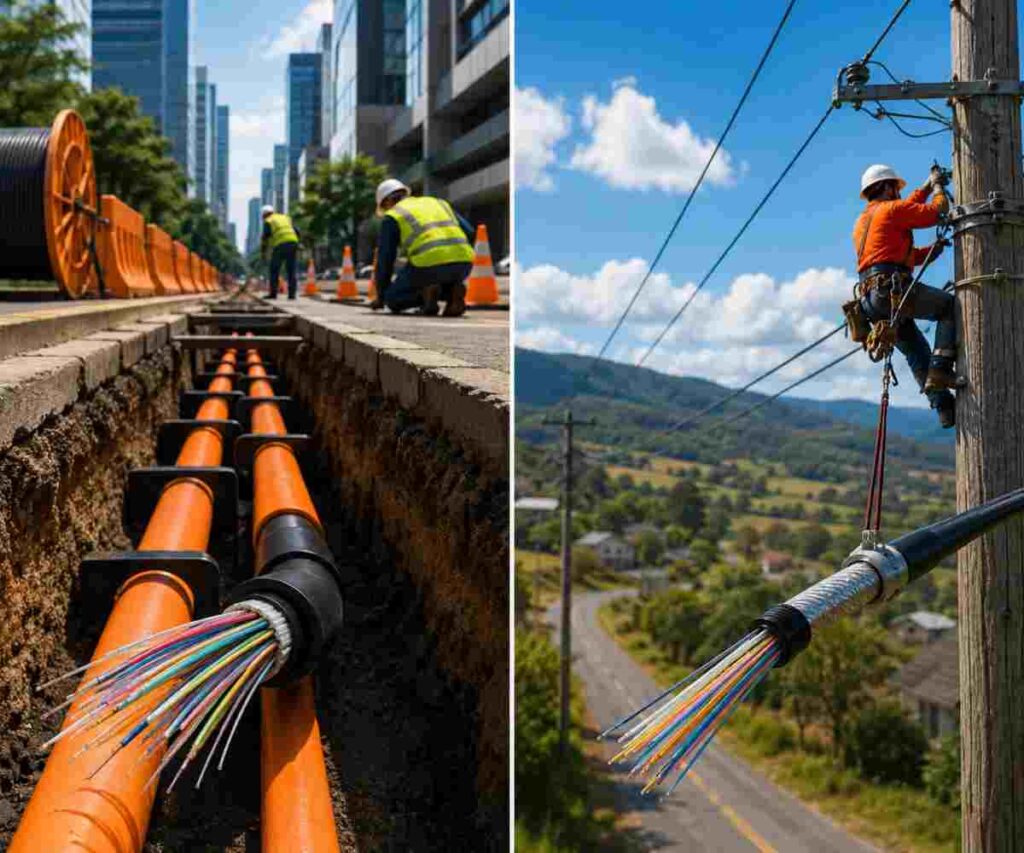

Understanding Underground Fiber Networks
Real-World Example of Underground Deployment
Underground Fiber networks involve installing cables beneath the surface using conduits or direct burial. These are common in dense cities where reliability and aesthetics are critical.
Take cities like Singapore, for example. Over 90% of its Fiber infrastructure is underground, supporting one of the fastest internet ecosystems globally. This approach ensures minimal disruption from tropical storms and urban congestion.
Another example is metro rail communication systems, where Fiber is always routed underground for safety and uninterrupted operations. These networks often achieve uptime levels above 99.99%, making them ideal for mission-critical applications.
You may also like: “Trends in Outsourcing Fiber Optic Cable Planning and Design Services”
Understanding Aerial Fiber Networks
Real-World Example of Aerial Deployment
Aerial Fiber networks are mounted on utility poles and are widely used in suburban and rural areas. They are especially popular in countries like United States, where approximately 60% of rural Fiber deployments are aerial due to cost advantages.
A good example is broadband expansion projects under government programs like the Rural Digital Opportunity Fund (RDOF). Service providers often choose aerial deployment to cover large distances quickly and economically.
In developing regions, aerial Fiber has enabled connectivity rollouts in record time. Some projects report deployment speeds up to 3x faster compared to underground methods.
Advantages of Underground Fiber Networks
Reliability Backed by Data
Underground Fiber networks are known for their durability and resilience. Studies show that underground systems experience 30–50% fewer outages compared to aerial networks, primarily because they are protected from environmental factors like wind, ice, and falling trees.
Another major benefit is reduced maintenance frequency. While repairs can be complex, they are needed less often. In urban business districts, downtime costs can exceed $5,000 per minute, making reliability a top priority—this is where underground Fiber shines.
Additionally, underground systems offer better protection against accidental damage. In regions prone to storms or cyclones, underground Fiber can maintain connectivity even when power lines are down. This is why financial hubs and data centers heavily rely on buried Fiber infrastructure.
Disadvantages of Underground Fiber Networks
Cost Statistics and Challenges
The biggest drawback? Cost. Installing underground Fiber can range from $25,000 to $100,000 per mile, depending on terrain and urban density. In contrast, aerial deployment can cost as low as $10,000 to $30,000 per mile.
Urban areas add another layer of complexity. Excavation permits, traffic management, and utility coordination can increase project timelines by 20–40%. Maintenance is also more expensive—fault detection and repair may take hours or even days due to the need for digging.
There’s also the risk of accidental cuts during construction. Reports suggest that over 25% of Fiber outages in urban areas are caused by third-party digging activities, which can impact even well-protected underground networks.
Advantages of Aerial Fiber Networks
Speed and Cost Benefits with Numbers
Aerial Fiber networks are the go-to choice when speed and budget matter. Installation costs are typically 40–60% lower than underground systems, making them ideal for large-scale rollouts.
Deployment speed is another major advantage. Crews can install 1–2 miles of aerial Fiber per day, compared to significantly slower underground trenching rates. This makes aerial networks perfect for rapid expansion projects, especially in underserved areas.
Maintenance is also simpler and cheaper. Faults can be identified visually and repaired quickly, reducing downtime. In many cases, service restoration can happen within a few hours, compared to longer repair cycles for underground systems.
Disadvantages of Aerial Fiber Networks
Risk and Failure Rate Insights
Aerial Fiber networks are more vulnerable to environmental damage. Studies indicate that weather-related incidents account for nearly 40% of aerial Fiber outages, including storms, high winds, and ice accumulation.
Another issue is physical damage. Vehicle collisions with poles, animal interference, and even vandalism can disrupt service. In cyclone-prone regions, aerial networks often experience higher failure rates during extreme weather events.
There’s also the aesthetic concern. Overhead cables can clutter cityscapes, leading many urban planners to restrict aerial installations. Additionally, pole-sharing agreements can complicate deployment, especially when multiple telecom providers are involved.
Cost & Performance Comparison Table
|
Factor |
Underground Fiber |
Aerial Fiber |
|
Installation Cost per Mile |
$25K–$100K |
$10K–$30K |
|
Deployment Speed |
Slow |
Fast (up to 3x faster) |
|
Outage Rate |
Low (30–50% fewer outages) |
Higher |
|
Maintenance Complexity |
High |
Moderate |
|
Weather Impact |
Minimal |
High |
|
Lifespan |
25–40 years |
15–25 years |
Choosing the Right Deployment Strategy
The decision between underground and aerial Fiber depends on multiple factors. Urban environments with high data demand and strict aesthetic requirements often favor underground systems. Rural and suburban areas, on the other hand, benefit from the cost efficiency and speed of aerial deployment.
In many modern projects, a hybrid approach is used. Critical zones like business districts and data centers use underground Fiber, while less sensitive areas rely on aerial networks. This strategy balances cost, performance, and scalability effectively.x
